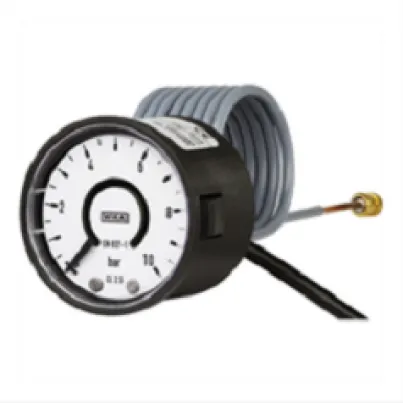

Model PGS05
Brands : Wika
Harga :
Harga :
Rp.
Description :
applications: Model PGS05
For monitoring water pressure changes in heating plants (wall-type boilers, free-standing boilers)
WIKA VIETNAM description: Model PGS05
Design: EN 837-1
Nominal size in mm: 4
Accuracy class: 2.5
Scale ranges: 0 ... 2.5 to 0 ... 10 bar or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation:
Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
Permissible temperature:
Ambient: -20 … +60 °C
Medium: +60 °C maximum
Temperature effect: When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span
Process connection: Cu-alloy, lower back mount (LBM), capillary, length 450 mm, with male thread G ¼ connection
Pressure element: Cu-alloy, C-type
Movement: Cu-alloy
applications: Model PGS05
For monitoring water pressure changes in heating plants (wall-type boilers, free-standing boilers)
WIKA VIETNAM description: Model PGS05
Design: EN 837-1
Nominal size in mm: 4
Accuracy class: 2.5
Scale ranges: 0 ... 2.5 to 0 ... 10 bar or all other equivalent vacuum or combined pressure and vacuum ranges
Pressure limitation:
Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: Full scale value
Permissible temperature:
Ambient: -20 … +60 °C
Medium: +60 °C maximum
Temperature effect: When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span
Process connection: Cu-alloy, lower back mount (LBM), capillary, length 450 mm, with male thread G ¼ connection
Pressure element: Cu-alloy, C-type
Movement: Cu-alloy
