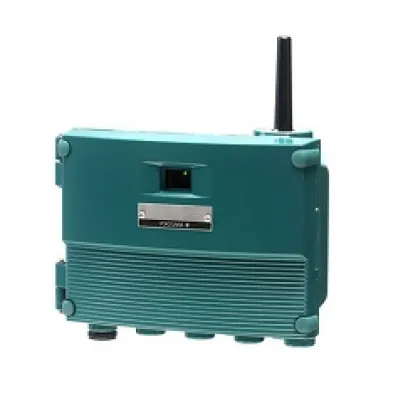

Model YTMX580 Multi-Input
Temperature Transmitter
Brands : Yokogawa
Harga :
Harga :
Rp. Please Contact
Description :
Easy Setup: Field Wireless
Cut back on troublesome wiring, reducing setup costs.
Traditional wired connections can easily be switched to a wireless solution.
ISA100.11a International Wireless Communication Standard2
Advanced encryption maintains communication security.
Multi-vendor communication supports transmitters from a variety of manufacturers.
Reliable, Fast, 8-ch Multipoint Measurements
8 ch universal input: Perfect for multipoint measurement applications.
High performance measurements with intervals as fast as 1 sec (3 ch), or 2 sec (8 ch).
Superb environmental tolerance:
Operating temperature of -40 to 85°C
(-40 to 185°F)3;
Protection level of IP66/IP67 & NEMA 4X.
Explosion protection
FM, CSA: Intrinsically safe Approval, non-incendive (Class I) Approval
ATEX, IECEx: Intrinsically safe Approval
TIIS: Intrinsically safe Approval
Easy Battery Maintenance
Typical battery life is 6 years (measuring at 60 seconds intervals).
Battery packs can be swapped even in hazardous areas.
Supporting Plant Wide Field Wireless
Full Redundancy(Duplicate, Duocast)
4hops
Remote Antenna + Extension cable
Does not support explosion proof standards for 4 to 20 mA DC signal input.
Industrial wireless communication standard from the International Society of Automation (ISA).
TIIS: –20 to 60°C
FM, CSA, ATEX, IECEx: –50 to 70°C
Easy Setup: Field Wireless
Cut back on troublesome wiring, reducing setup costs.
Traditional wired connections can easily be switched to a wireless solution.
ISA100.11a International Wireless Communication Standard2
Advanced encryption maintains communication security.
Multi-vendor communication supports transmitters from a variety of manufacturers.
Reliable, Fast, 8-ch Multipoint Measurements
8 ch universal input: Perfect for multipoint measurement applications.
High performance measurements with intervals as fast as 1 sec (3 ch), or 2 sec (8 ch).
Superb environmental tolerance:
Operating temperature of -40 to 85°C
(-40 to 185°F)3;
Protection level of IP66/IP67 & NEMA 4X.
Explosion protection
FM, CSA: Intrinsically safe Approval, non-incendive (Class I) Approval
ATEX, IECEx: Intrinsically safe Approval
TIIS: Intrinsically safe Approval
Easy Battery Maintenance
Typical battery life is 6 years (measuring at 60 seconds intervals).
Battery packs can be swapped even in hazardous areas.
Supporting Plant Wide Field Wireless
Full Redundancy(Duplicate, Duocast)
4hops
Remote Antenna + Extension cable
Does not support explosion proof standards for 4 to 20 mA DC signal input.
Industrial wireless communication standard from the International Society of Automation (ISA).
TIIS: –20 to 60°C
FM, CSA, ATEX, IECEx: –50 to 70°C
